Peanut CCD Color Sorting Machine RCSK5

Technology Data:

Model RCSK5
Output(t/h) 7-12.5
Carryover (bad: good) 8:1
Accuracy (%) 99.99%
Voltage (V/Hz) 220/50
Power (Kw) 1.5-3.5
Air pressure (Mpa) 0.6-0.8
Consumption (L/min) <3000
Weight (Kg) 800
Dimensions (mm) 2260*1607*1953

Full Color Optical Peanut Grades and Separator Sorting Machine Features:

1) The particular light difference sorting model works great on the light beige, speckled and dark rice. The first time sorting effect can reach 1:1, the recycling carryover can reach 15:1, and it can reject the difference without rejecting the belly white rice. This technique is absolutely the most advanced in this industry.
2) Under the belly white model, the first time sorting carryover is above 1:1, the recycling carryover is above 25:1.
3) The top international DSP+FPGA process technique ensures the high working efficiency and accurate calculating, and it is easy to be ungraded and maintained.
4) Top international 2048 high-speed line scan CCD image sensors and tailor-made American cameras make sure that 0.04mm2 tiny scab can be precisely identified.
5) The newest smart LED cold light sources with no shadow make the recognition easier and the sorting more precise, and it is endowed with long serving life and no need to preheat.
6) The LED air cooling system significantly increases the service life of LED.
7) The only one in this industry who own intellectual property on the solenoid valve, our valves are made of Special high strength material, it has the advantages of strong sucking ability, no residual magnetism, linear flow, price blow, high consistency, the t working frequency can reach 1200HZ per second, the shortest response time can be 0.6ms, and the service life can reach 5-10 billion times. They can greatly decrease the carryover, cut 20%-30% of air consumption.

Recommended Applications:

Rice
Wheat
Peanuts
Seeds
Grains
Beans and Pulses


Example of Sorting:

peanut_color_sorting_machine_metak


Packaging & Shipping

Machines to be carefully packaged to endure transportation under harsh conditions. Handling instructions are designed to protect the machine in the critical moments during transportation, unloading and installation.

Delivery Time: 20- 30 Days after order confirmed.

Payment Terms: TT, Letter of Credit.


Commissioning and Installation:

1. On Site Installation and Training Service by our professional engineer ;

2. Study and Learn the Machine Operation in Our Factory.

3. Responsive in 24 hours: Telephone, Email, Video or On Site Solutions by our Technical Experts.


After Sales Services:

• With presence in a variety of countries, Metak is strongly committed to being close to the customer.

• Through cooperation with loyal and carefully evaluated and trained local employees and partners, Metak managed to provide fast, competent and rooted services in the context of customers.

• Application center in Hefei production base offer demo machines for tests and comparison.

• A strong central technical team in Hefei is supporting local channels with training, advice and technical support.

• Under normal working circumstances, Metak machines enjoy 1 year of full warranty and a lifelong warranty on the machine structure upon the date of purchase.

• Service line is available for emergency support.

• Metak products will be serviced and supported wherever customers are located.

• Through the global Metak network and from Metak technical experts, training on Metak machines is available worldwide.


Metak Peanut Sorter Machine Working Video

How does the Metak Peanut Sorting Machine Work?

According to the different color selection of materials, detecting the colors of the granular materials that pass before them, and using mechanical or pneumatic ejection devices to divert the material whose colors do not fall within the acceptable range.

Suitable sorting and grading: All peanuts, rice, wheat, etc..


How Metak Peanut Sorter Machine Can Help you?

Improving your profitability:

Highest quality production
Lowest product loss
Diverse products, any contaminant
Minimal product damage
Low operating costs – long term warranty
Optimum recovery rates

Enhancing your productivity:

Minimum operator skills
High uptime
Quick and easy installation
Maintenance from remote locations
For consistency in production
Effective in harshest environments

Get Your Solutions with Metak Peanut Color Sorter Machine, Inquiry us NOW!


Send your enquiry about this product:

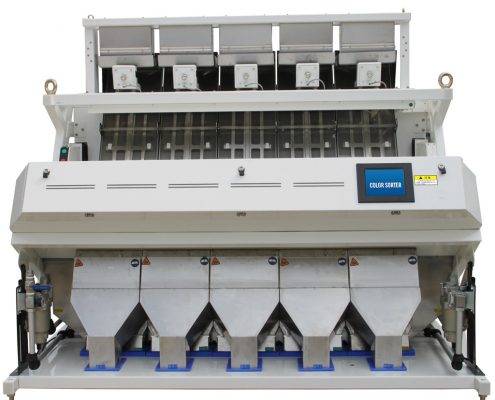

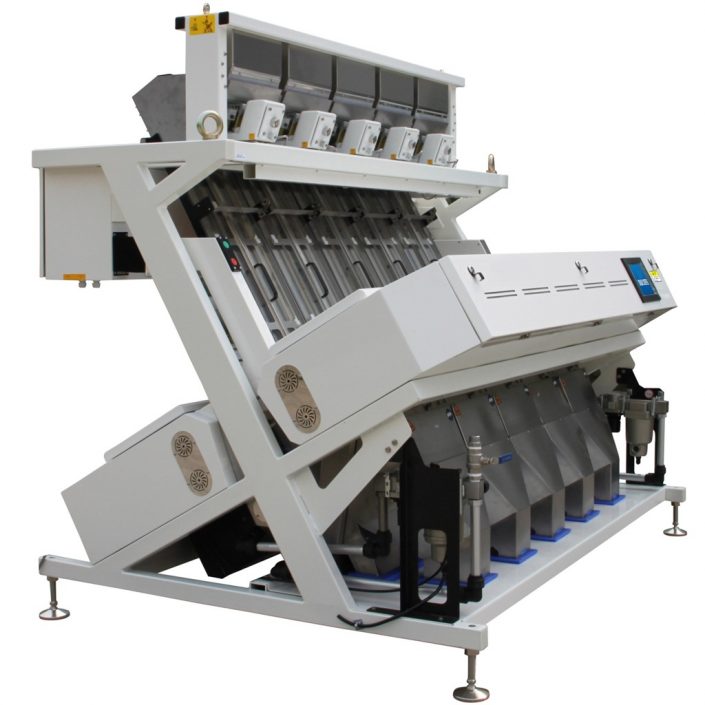

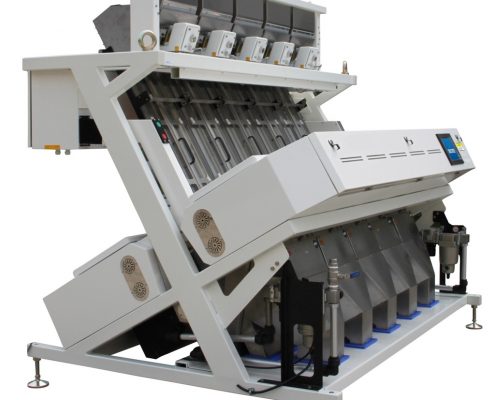

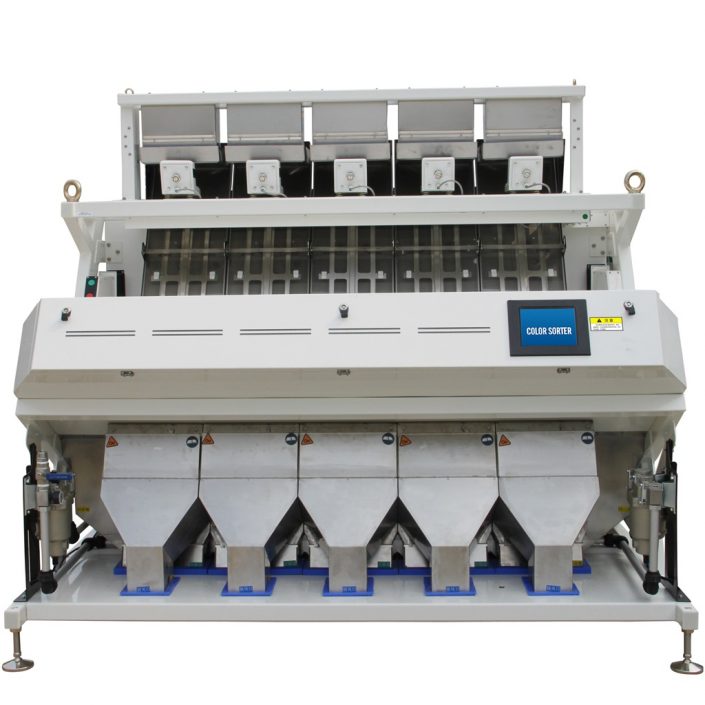

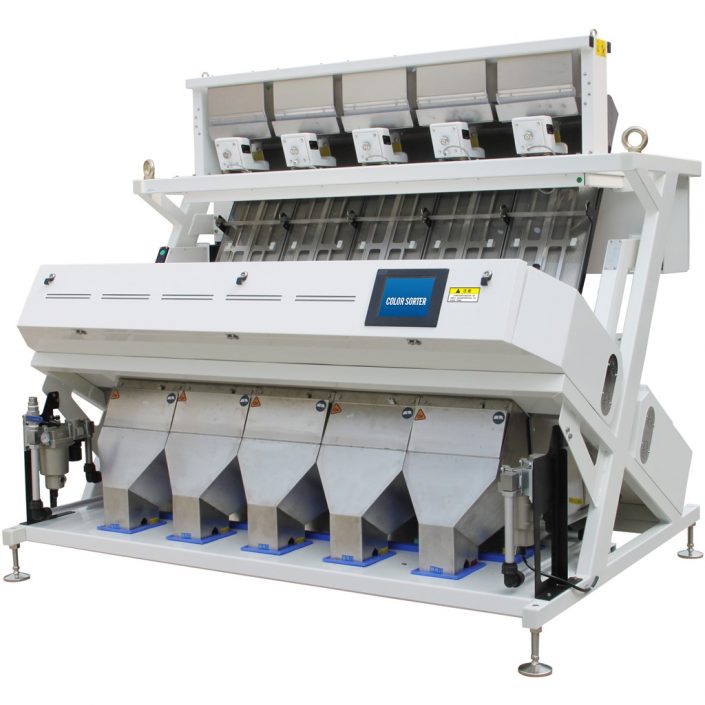

Check More Images of Metak Peanut Sorter Machines:
