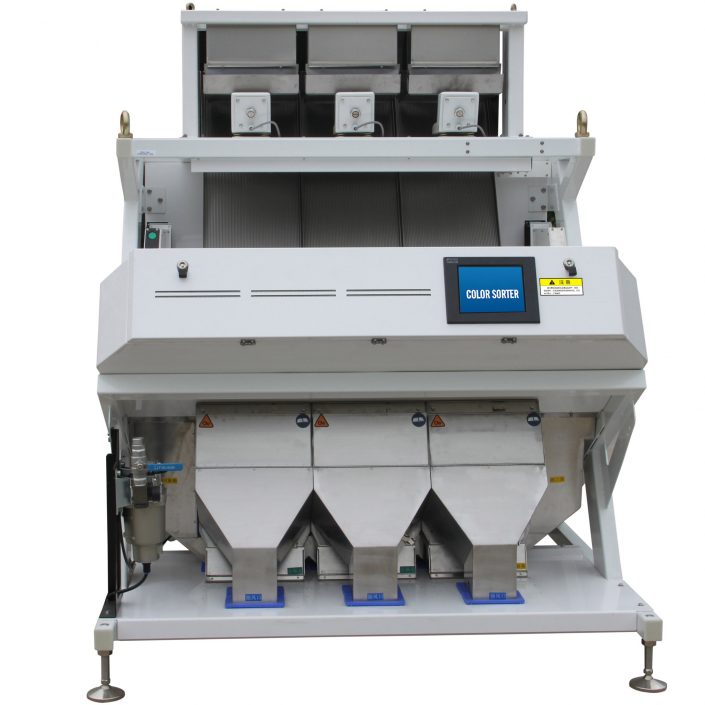

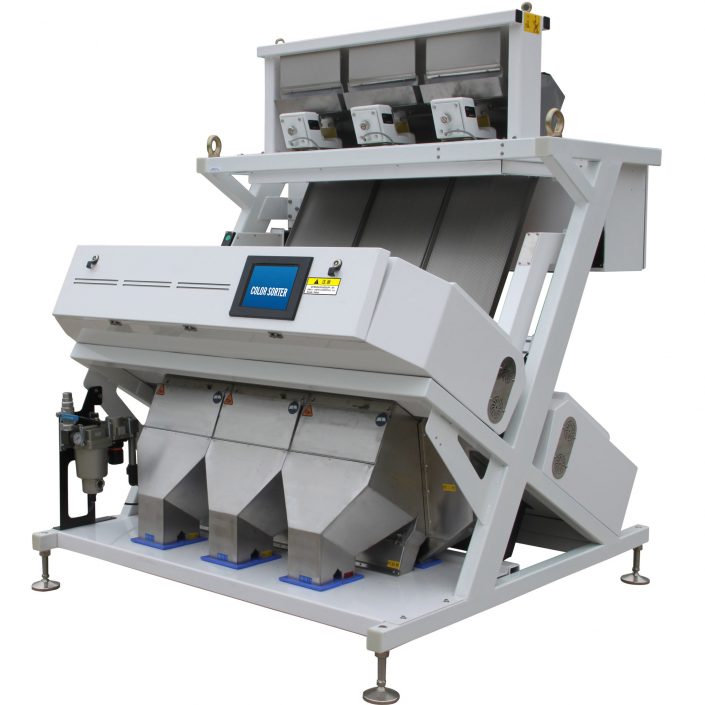

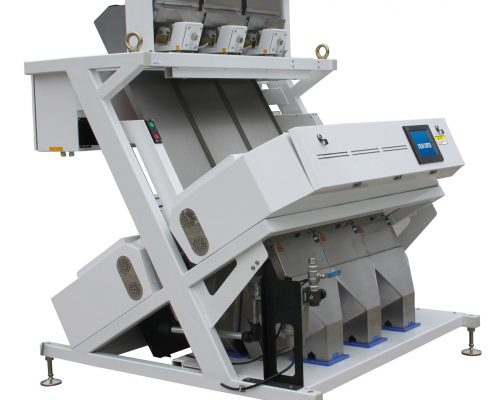

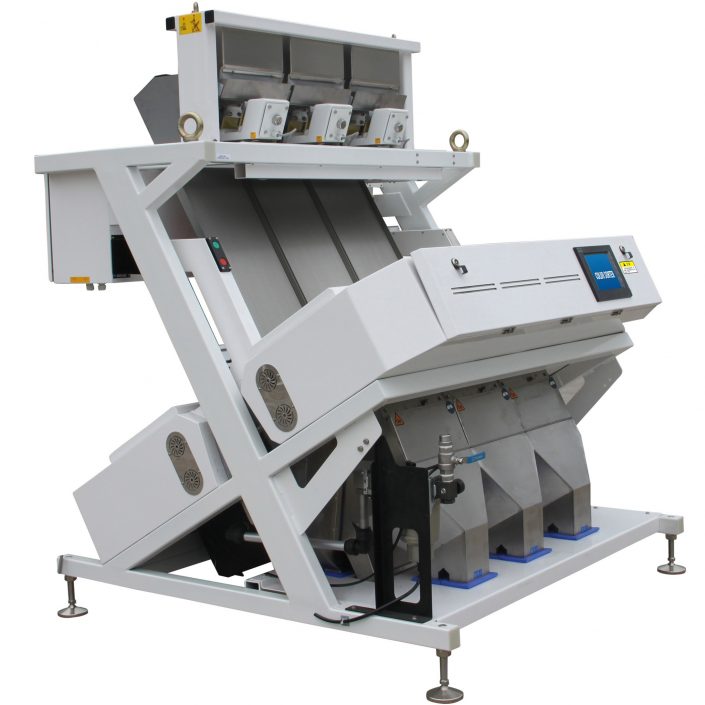

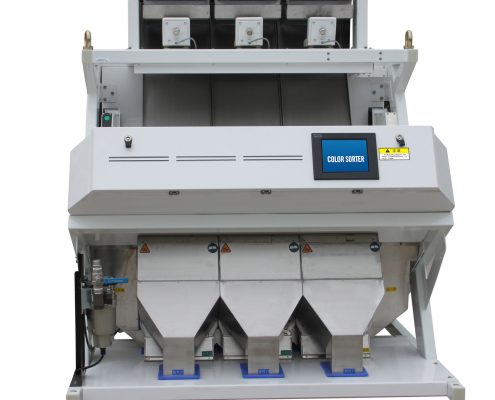

CCD Corn Color Sorter Machine RCSK3 – Metak Color Sorting

Technology Data:

Model RCSK3
Output(t/h) 4-7.5
Carryover (bad: good) 8:1
Accuracy (%) 99.99%
Voltage (V/Hz) 220/50
Power (Kw) 1-2
Air pressure (Mpa) 0.6-0.8
Consumption (L/min) <2200
Weight (Kg) 500
Dimensions (mm) 1875*1607*1953

CCD Corn Color Sorting Machine Features:

1. Application of air-cooled system
The application of air-cooled system has solved the problems of high temperature, heavy energy loss and short service life – all of which were caused by longtime utilization of an LED light source, ensuring the durability of an LED light source under a constant temperature.
2. Cloud object link system
Autonomous cloud control, cloud computing technology, the realization of online operations, online monitoring, online services, free upgrades.
3. Operating system
With intelligent operating platform, the system can be mastered and operated easily, turning the intelligent communication between human and machine into reality and eliminating all your concerns about operating.
4. Color image acquisition system
Using high-definition color CCD camera image acquisition system, to achieve material (RGB) red, green and blue three color information acquiring, depth recognition tiny fine color sorter can choose other impurities.
5. Image processing system
Applying the international advanced 2048 full color scanning technology, DSP+FPGA processing technology, as well as complex algorithm of multiple modes combined with color and space, this system can provide the function of color&shape-based sorting depending on the difference of materials, and allow you to set multiple modes freely and select any material from tens of thousands of ones at your option.
6. Solenoid Valves
The only independently developed dedicated solenoid valves with independent intellectual property rights for color sorters in the industry; special high-strength materials, strong suction, no residual magnetism, linear flow, precise blow, high consistency, significantly lowered optimal carryover; gas consumption for removing 1 ton materials is reduced by 20-30%; the frequency can be up to 1200hz per second, the fastest response time is within 0.5m/s, the service life is 5-10 billion times.
7. Unique air-suction and ventilation system
The utilization of the air-suction and ventilation system can help to clear away the floats in the material, ensuring a higher resolution of lens and a more accurate color-based sorting rate.
8. Chute
Based on the varieties of the color-based sorted materials, chutes of appropriate specification can be selected. In addition, the utilization of a four-section leather screen guarantees a more smooth slide of the material and a lower material-taking-out ratio.
9. Ventilation cooling system
The ventilation cooling system is our pioneering application. Cooled by a ventilation fan, the temperature of sorting cabinet can be reduced efficiently, thus guaranteeing the operating stability of the machine, improving the safety performance of the machine and preventing the machine components from being damaged.


CCD Corn Sorting Machine Example of Sorting:

corn color sorter


Packaging & Shipping

Machines to be carefully packaged to endure transportation under harsh conditions. Handling instructions are designed to protect the machine in the critical moments during transportation, unloading and installation.

Delivery Time: 20- 30 Days after order confirmed.

Payment Terms: TT, Letter of Credit.


Commissioning and Installation:

1. On Site Installation and Training Service by our professional engineer ;

2. Study and Learn the Machine Operation in Our Factory.

3. Responsive in 24 hours: Telephone, Email, Video or On Site Solutions by our Technical Experts.


After Sales Services:

• With presence in a variety of countries, Metak is strongly committed to being close to the customer.

• Through cooperation with loyal and carefully evaluated and trained local employees and partners, Metak managed to provide fast, competent and rooted services in the context of customers.

• Application center in Hefei production base offer demo machines for tests and comparison.

• A strong central technical team in Hefei is supporting local channels with training, advice and technical support.

• Under normal working circumstances, Metak machines enjoy 1 year of full warranty and a lifelong warranty on the machine structure upon the date of purchase.

• Service line is available for emergency support.

• Metak products will be serviced and supported wherever customers are located.

• Through the global Metak network and from Metak technical experts, training on Metak machines is available worldwide.

How does the Metak Corn Color Sorter Machine Work?

According to the different color selection of materials, detecting the colors of the granular materials that pass before them, and using mechanical or pneumatic ejection devices to divert the material whose colors do not fall within the acceptable range.

Suitable corn sorting and grading: All kinds of corn.


How Metak Corn Color Sorter Machine Can Help you?

1. A Quality and Professional Color Sorter Supplier, Save your Money and Time.
2. Recommend a Better Solution only Meet Your Requirement: Raise the Output and Accuracy with Lower Cost.
3. Perfect After-Sale Service: On Site Installation; Engineers Training Course till You Learn; Video Instruction Guide; Response in 24 hours.
