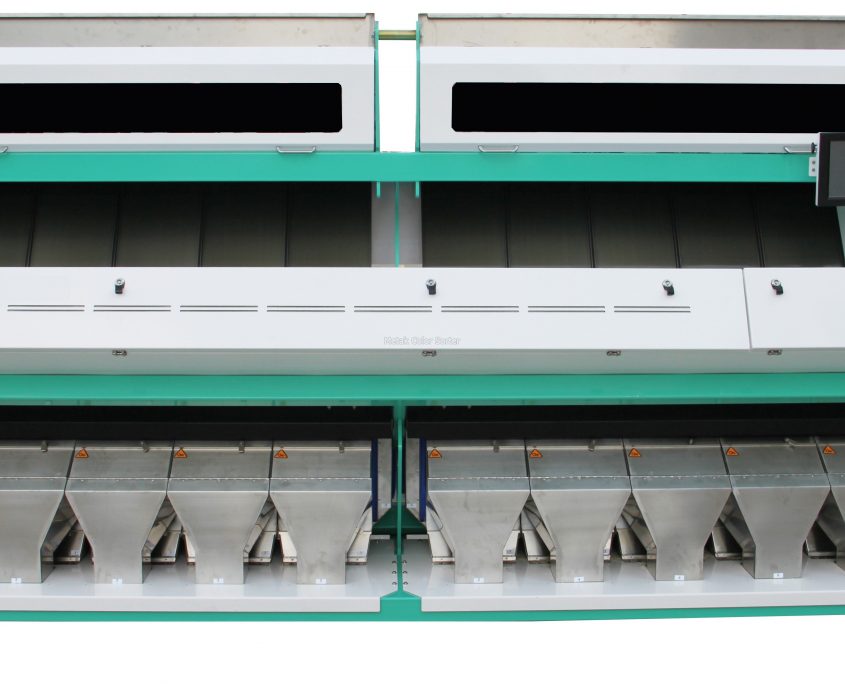

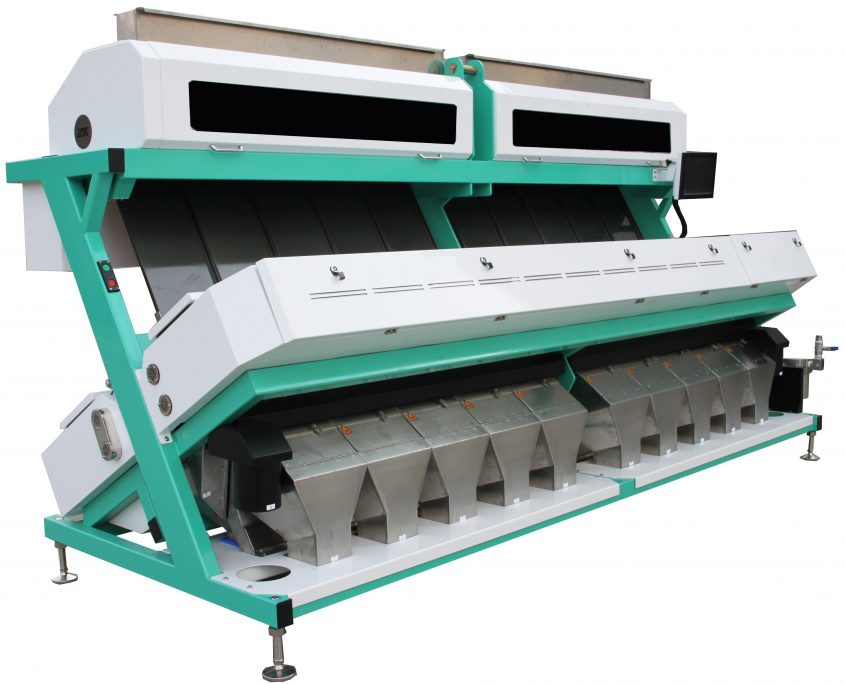

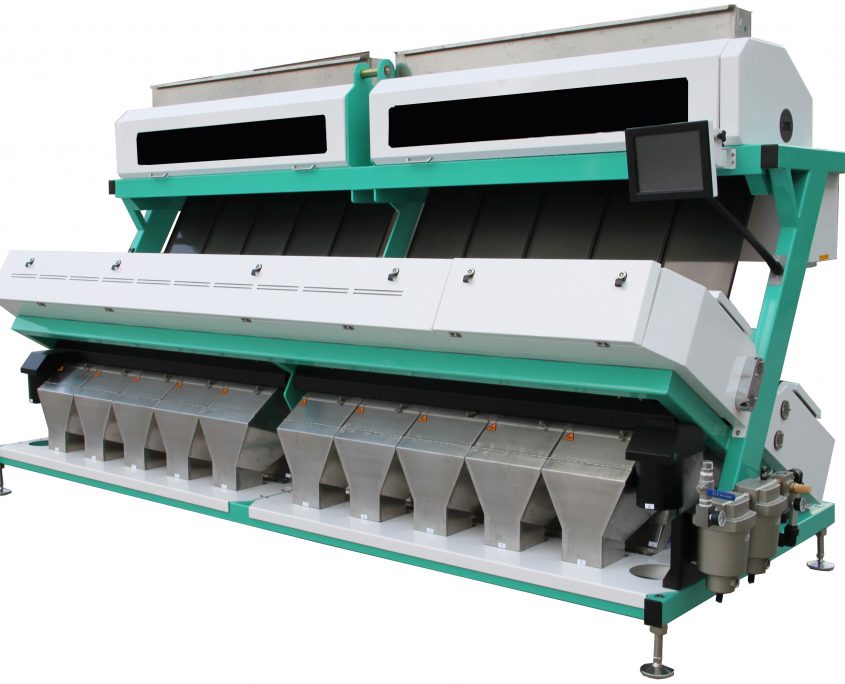

Optoelectronic Rice CCD Color Sorter Machine Manufacturer RCSR – Metak Color Sorting

Technical Data:

Model RCSR10
Output(t/h) 10-25
Carryover (bad: good) >15:1
Accuracy (%) >99%
Voltage (V/Hz) 220V/50
Power (Kw) 2.5-6.3
Air pressure (Mpa) 0.6
Consumption (L/min) <8000
Weight (Kg) 1900
Dimensions (mm) 4100*1650*2150

Rice Color Sorter Machine RCSR Features:

1. Unique-in-the-industry light different color selection mode is efficient for the high-end color selection of light beige, speckled or darkened rice. The first-time output compounding rate is over 1:1, and the second-time more than 15:1. (Bad: Good) Under this mode, the signal separation of belly-white and shallow yellow would be accomplished, selecting the yellow without any white, as is a pioneering technology in the industry.

2. Under the different-color mode, color-selection requirements of all kinds of grain can be achieved. The first-time output compounding rate is over 1:1, and the second-time more than 15:1. (Bad: Good)

3. Under the belly-white mode, color selection will be further optimized. For the belly-white, the first-time output compounding rate is above 1:1; and the second-time over 25:1. For full-white or full-yellow, the first-time output compounding rate is also above 1:1; and the second-time more than 30:1.

4. Newly-optimized operating interface is quite user-friendly. The “one-button auto” and “project back-up” functions help to reset the original parameters when misconduct happens.

5. Image Acquisition System,International cutting-edge industry special 5088 full-color high-speed line scan imaging sensor CCD,and special color sorting cameras tailored by top international suppliers, can precisely identify subtle spots of 0.04mm2, and meet high-end color sorting requirements of synchronous sorting and independent sorting for belly-white and core-white.

6. Light Source,Innovative smart LED shadowless cold light system design can efficiently find out small spots, light yellow, belly-white, core-white, black pin-points, which makes identification and judgment much easier, sorting more accurate. The light source has long service life, high luminous efficiency and strong anti-interference stability, and no warm-up is needed.

7. Image processing system,The rice small lesion, shallow yellow, white belly, white core, needle point such as black Leis, grain, aiming at provide more flexible separation combination scheme in the multiple modes of complex intelligent algorithm, color sorting accuracy higher, ratio of lower.

8. discharging system,For domestic and foreign customers have different needs, hopper is “the Big Dipper”, and each independent “hopper” two options, a large bucket can be convenient installation, Little Dipper can according to the customer color selected requirements changed to “three color selection models

9. Feeding system, Original intelligent anti cover feeding system, intelligent recognition has no material, ensure to keep the feeding rate and the number of uniform. Dust-proof, anti wet, shockproof, anti slip material and maintenance requirements low.

10. Design of ultra wide channel number, The world’s first super channel number design, super capacity, ultra large output, to adapt to the production line flow 10~22 tons and above.

11. Cloud object link system Autonomous cloud control, cloud computing technology, the realization of online operations, online monitoring, online services, free upgrades.

Example of Sorting:


Packaging & Shipping

Machines to be carefully packaged to endure transportation under harsh conditions. Handling instructions are designed to protect the machine in the critical moments during transportation, unloading and installation.

Delivery Time: 20- 30 Days after order confirmed.

Payment Terms: TT, Letter of Credit.

Commissioning and Installation:

1. On Site Installation and Training Service by our professional engineer ;

2. Study and Learn the Machine Operation in Our Factory.

3. Responsive in 24 hours: Telephone, Email, Video or On Site Solutions by our Technical Experts.

After Sales Services:

• With presence in a variety of countries, Metak is strongly committed to being close to the customer.

• Through cooperation with loyal and carefully evaluated and trained local employees and partners, Metak managed to provide fast, competent and rooted services in the context of customers.

• Application center in Hefei production base offer demo machines for tests and comparison.

• A strong central technical team in Hefei is supporting local channels with training, advice and technical support.

• Under normal working circumstances, Metak machines enjoy 1 year of full warranty and a lifelong warranty on the machine structure upon the date of purchase.

• Service line is available for emergency support.

• Metak products will be serviced and supported wherever customers are located.

• Through the global Metak network and from Metak technical experts, training on Metak machines is available worldwide.

Optoelectronic Rice CCD Color Sorter Machine Working Video

How does the Metak Color Sorter Machine Work?

According to the different color selection of materials, detecting the colors of the granular materials that pass before them, and using mechanical or pneumatic ejection devices to divert the material whose colors do not fall within the acceptable range.

Suitable rice sorting and grading: All kinds of rice.

How Metak Color Sorter Machine Can Help you?

1. A Quality and Professional Color Sorter Supplier, Save your Money and Time.
2. Recommend a Better Solution only Meet Your Requirement: Raise the Output and Accuracy with Lower Cost.
3. Perfect After-Sale Service: On Site Installation; Engineers Training Course till You Learn; Video Instruction Guide; Response in 24 hours.
